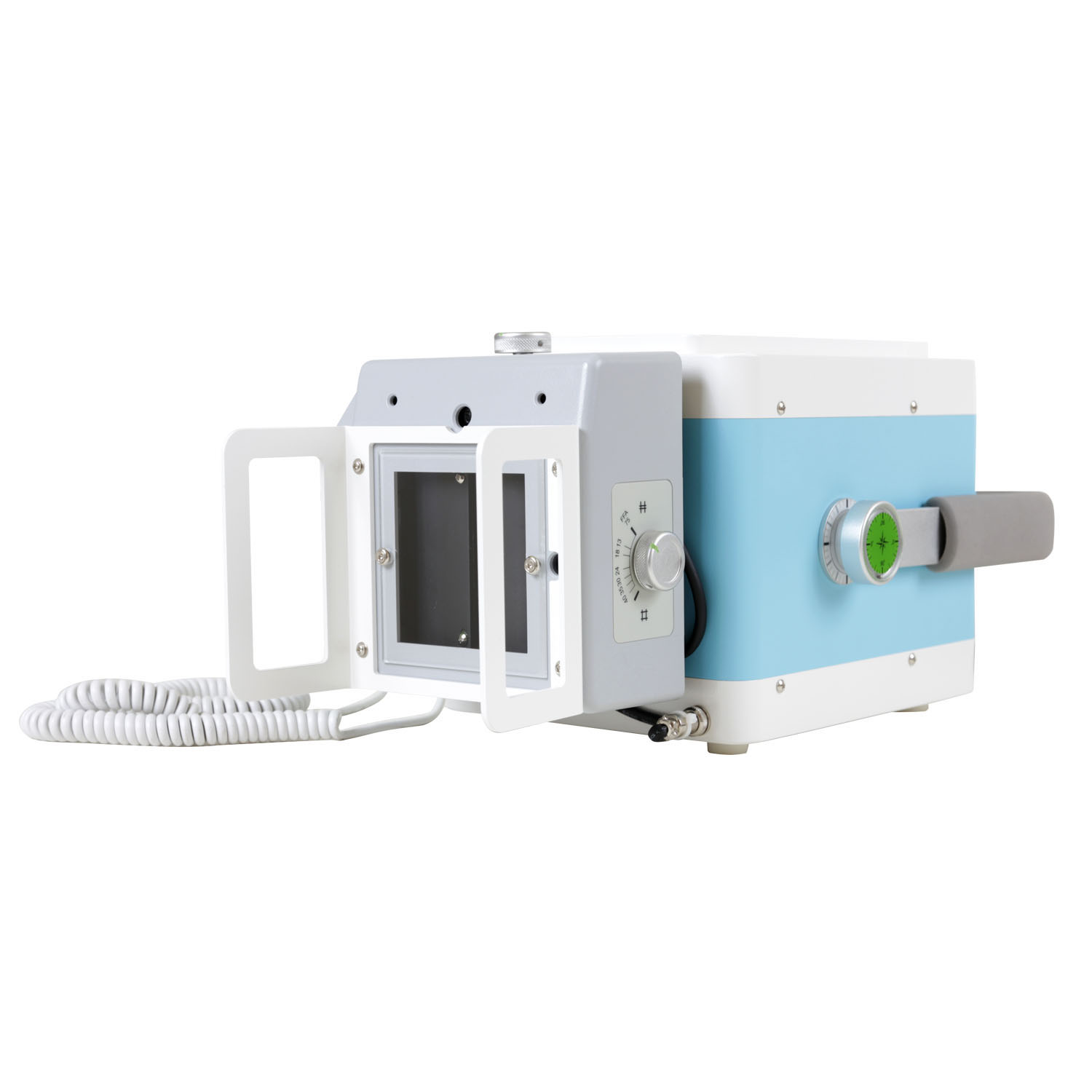

Innovative, ultra-light, high frequency portable x-ray system

Get excellent imaging, quality, accuracy, reproducibility, and long-term stability with this portable digital x-ray system. For more information on the X-ray Generator available through Avante Health Solutions, contact an Avante representative today.

Features

  • Innovative, ultra-light, high-frequency portable x-ray system.
  • Built-in touchscreen clearly displays x-ray settings and diagnostic information.
  • Rapid kV rising time minimizes unnecessary patient doses and creates superior image quality.
  • Easy-to-use operating console allows clinicians to easily select and change x-ray parameters.
  • Durable design with solid body.
  • Also features automatic calibration and DAP display functions.
  • Comes standard with x-ray unit, hand switch, and mobile stand.
  • Optional — footswitch.

Specifications

General

  • Max output power: 2.8 kW
  • Generator frequency: 70 kHz
  • kV Range: 40 ~ 120 kV
  • mA Range: 12 ~ 40 mA
  • mAs Range: 0.4 ~ 100 mAs
  • Focal spot: 1.2 mm x 1.2 mm
  • Target angle: 16°
  • Anode heat storage: 50 kHU
  • Input voltage: 110 V / 220 V
  • Phase / frequency: Single / 50 ~ 60 Hz
  • Dimensions: 14.2 in x 7.9 in x 7.5 in
  • Packing size: 20.5 in x 15.8 in x 13 in
  • Net weight: 26.5 lb
  • G-weight: 48.6 lb

Hand Switch

  • Two step x-ray exposure hand switch
  • Working voltage (AC/DC): 125V/30V
  • Working current (AC/DC): 1A/2A

Mobile Stand

  • Arm angle: 0° ~ 150°
  • Max. arm vertical: 4.6 ft
  • Maximum load capacity: 66.1 lb
  • Wheel size, 50Ø, 0.9 in
  • Weight (mobile stand): 25.6 lb
